Architecture

Saturon is designed as a grammar-aware color engine that models the CSS Color Module Level 5 specification as JavaScript objects. This approach allows for runtime parsing, conversion, and extensibility of the entire <color> syntax. The architecture revolves around a unified ColorConverter type, with specialized subtypes for different color constructs. At runtime, all color types resolve to ColorConverter instances, enabling consistent handling while supporting model-specific manipulations.

This document explains how Saturon represents the CSS <color> grammar (as defined in the W3C CSS Color Module Level 5) through objects like colorTypes, colorBases, colorFunctions, colorModels, and colorSpaces. For deeper details on the CSS specification, refer to the W3C document.

Overview of the CSS <color> Grammar

The CSS Color Module Level 5 defines <color> as:

<color> = <color-base> | currentColor | <system-color> |
          <contrast-color()> | <device-cmyk()> | <light-dark()>

<color-base> = <hex-color> | <color-function> | <named-color> |
               <color-mix()> | transparent

<color-function> = <rgb()> | <rgba()> |
                   <hsl()> | <hsla()> | <hwb()> |
                   <lab()> | <lch()> | <oklab()> | <oklch()> |
                   <color()>

Saturon treats each of these as JavaScript objects conforming to the ColorConverter type (or its subtypes). This enables:

• Validation: Checking if a string matches a color type.
• Parsing: Extracting coordinates from strings.
• Conversion: Bridging between color spaces using intermediate "bridge" models.
• Formatting: Generating CSS strings from coordinates.
• Extensibility: Registering custom types (e.g., jzazbz()) that integrate seamlessly.

All color representations are stored in runtime objects like colorTypes (for top-level <color> types) and resolved hierarchically.

Core Type: ColorConverter

The foundational type in Saturon is ColorConverter, which defines how each color syntax is handled:

export type ColorConverter = {
    isValid: (str: string) => boolean;
    bridge: string;
    toBridge: (coords: number[]) => number[];
    parse: (str: string) => number[];
} & (
    | {
          fromBridge: (coords: number[]) => number[];
          format: (coords: number[], options?: FormattingOptions) => string | undefined;
      }
    | { fromBridge?: undefined; format?: undefined }
);

This type is used for most top-level <color> constructs (e.g., currentColor, <system-color>, <contrast-color()>, <device-cmyk()>, <light-dark()>). These are stored in the colorTypes object as ColorConverter instances. For example, the converter for light-dark defines a parse function that resolves to the color according to the current theme.

At runtime, colorTypes is populated by spreading in colorBases (which includes <color-base> types).

Handling <color-base>

<color-base> is not a single type but a union of several: <hex-color>, <color-function>, <named-color>, <color-mix()>, and transparent. Each is defined as a ColorConverter and stored in the colorBases object.

• These are then spread into colorTypes like: { ...colorBases }.
• This allows <color-base> types to be treated uniformly alongside top-level <color> types.

Examples:

• <named-color>: Converter for colors like red, with parse mapping names to RGB coordinates.
• <hex-color>: Validates and parses hex strings (e.g., #ff5733) to RGB.
• transparent: Maps to [0, 0, 0, 0] in RGB.
• <color-mix()>: Parses mixes with weights and hue modes, bridging to RGB.

Handling <color-function>

<color-function> is also a union (<rgb()>, <hsl()>, etc.), treated as "color models" in Saturon. These are absolute colors with 3 components and optional alpha.

They start as ColorModelConverter:

export type ColorModelConverter = {
    targetGamut?: string | null;
    supportsLegacy?: boolean;
    alphaVariant?: string;
    components: Record<string, ComponentDefinition>;
    bridge: string;
    toBridge: (coords: number[]) => number[];
    fromBridge: (coords: number[]) => number[];
};

• These are stored in colorModels.
• At runtime, each is converted to a ColorConverter and added to colorFunctions.
• colorFunctions is then spread into colorBases like: { ...colorFunctions }.

This enables manipulation via component definitions (e.g., components: { h: { index: 0, value: "angle" } } for hsl), allowing channel-specific updates in workspaces.

Handling <color()>

The <color()> function supports multiple color spaces (e.g., srgb, display-p3, rec2020, xyz). These are defined as ColorSpaceConverter:

export type ColorSpaceConverter = {
    targetGamut?: null;
    components: string[];
    toLinear?: (c: number) => number;
    fromLinear?: (c: number) => number;
    bridge: string;
    toBridgeMatrix: number[][];
    fromBridgeMatrix: number[][];
};

• Stored in colorSpaces.
• At runtime, each is converted to a ColorModelConverter and added to colorModels like: { ...colorSpaces }.
• This matrix-based approach ensures accurate conversions (e.g., rec2020 to xyz-d65).

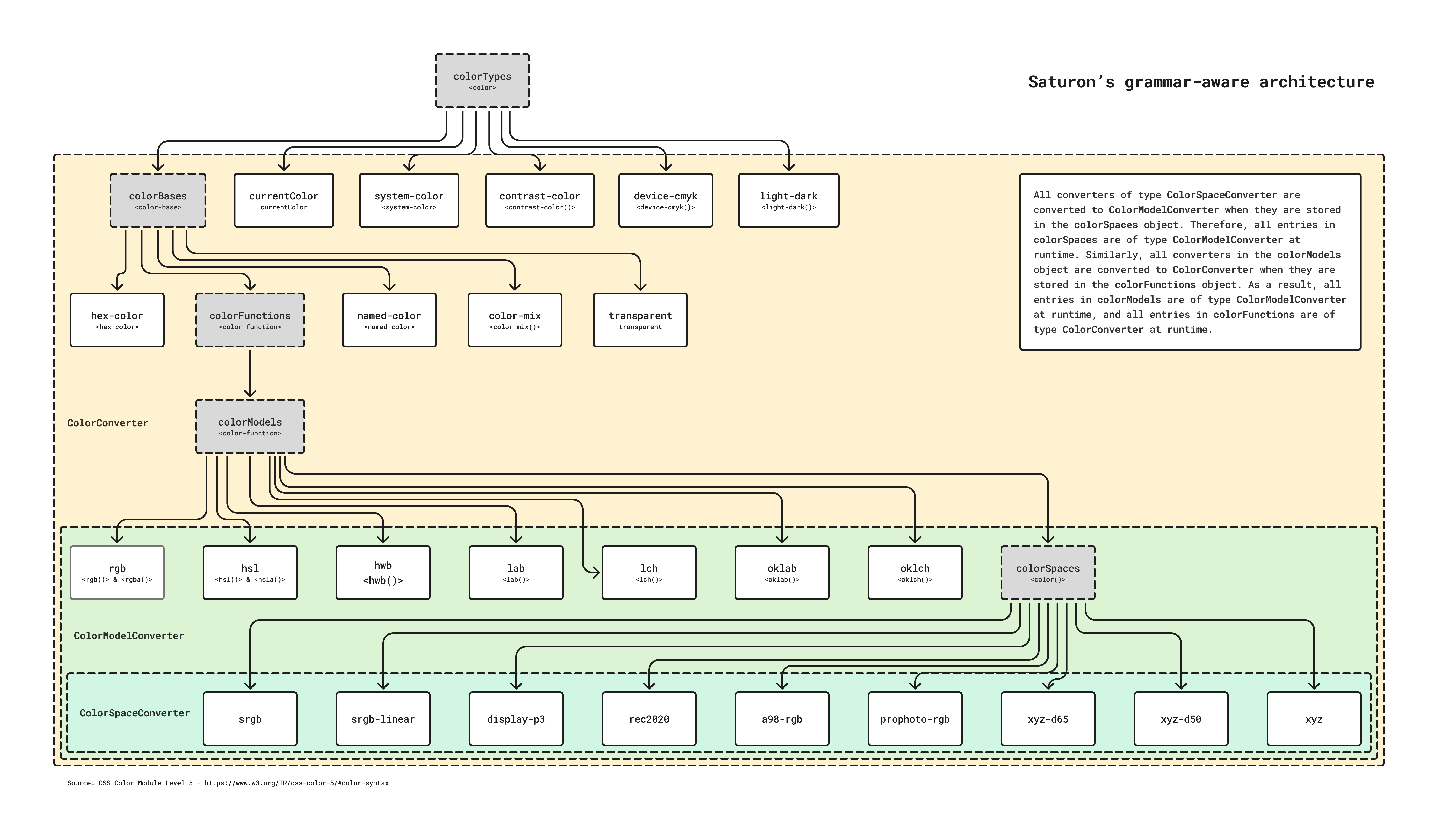

Runtime Resolution

Saturon resolves all types hierarchically at runtime:

1. colorSpaces (as ColorSpaceConverter) → Converted to ColorModelConverter → Added to colorModels.
2. colorModels (as ColorModelConverter) → Converted to ColorConverter → Added to colorFunctions.
3. colorFunctions → Spread into colorBases ({ ...colorFunctions }).
4. colorBases → Spread into colorTypes ({ ...colorBases }).
5. Top-level types (e.g., currentColor, <light-dark()>) are added directly to colorTypes as ColorConverter.

This ensures:

• All colors in colorTypes are ColorConverter instances for uniform parsing/conversion.
• Access via colorModels retains component definitions for manipulation (e.g., in workspaces).
• Extensibility: Plugins can register new converters that integrate into this hierarchy (e.g., custom ictcp as a <color-function>).

This architecture makes Saturon future-proof, allowing seamless addition of new CSS features or custom syntaxes while maintaining spec compliance.

For implementation details, explore the source code on GitHub.
